Pylon Mass Interconnect Products / Schnittstellen & Blöcke


Manufacturer / Hersteller:ECT

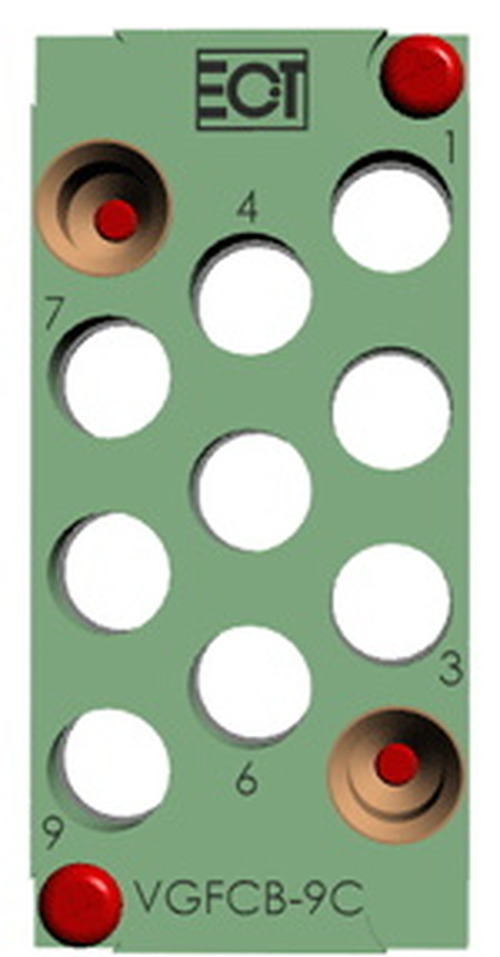

Block Modell:VGFCB-9CF
Block Modell Ref No./Nr.:Ref No: 1122
Function / Ausführung:9 Position up to 18 GHz Block
Features / Eigenschaften: Accessoires / Zubehör:

Both the receiver and ITA Adapters will accept flexible,

semi ridged and rigid coax cables terminated with an industry standard SMA.

Plug Mating block – VGRCB-9CF.


2 installed bushings 2 screws 4-40.

9 holes (without contacts).

Impedance 50 Ohms Fixture contact connection Style: SMA.

Can be used for all fixtures / receivers with a Pylon® interface channel.

A31898 for crimp connection.

A32434 – coax contacts ordered separately.

50 Ohm blind mate contact for a SMA Connector.

A31889 connector plug.

A31887 SMA connector torque wrench.

For use in all VG fixture / receiver styles.
