Pylon Mass Interconnect Products / Schnittstellen & Blöcke


Manufacturer / Hersteller:ECT

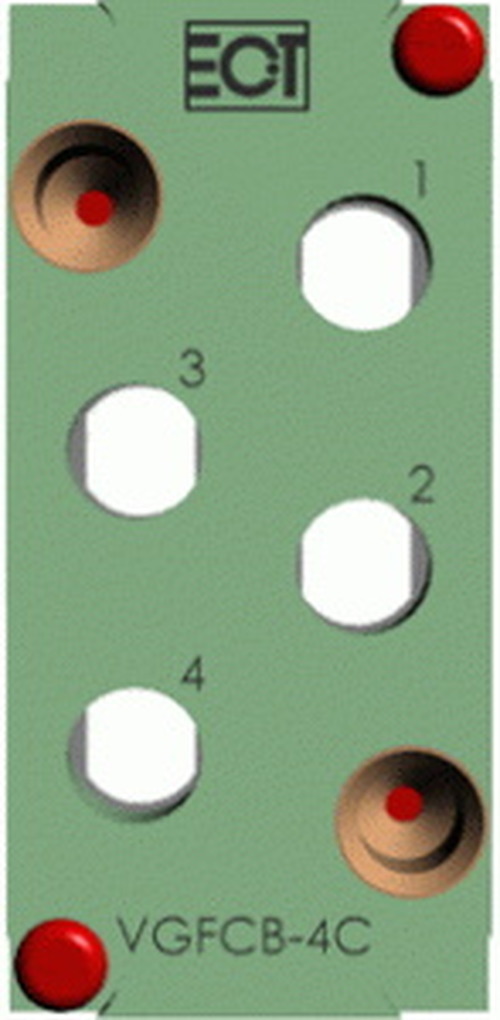

Block Modell:VGFCB-4CF
Block Modell Ref No./Nr.:Ref No: 610
Function / Ausführung:4 Position up to 18 GHz Block
Features / Eigenschaften: Accessoires / Zubehör:

Both the receiver and ITA Adapters will accept flexible, semi ridged and rigid coax cables terminated with an industry standard SMA Plug.

Mating block – VGRCB-4CF.


2 installed bushings 2 screws 4-40 4 holes (without contacts) Impedance 50 Ohms.

Fixture contact connection style: SMA.

Can be used for all fixtures / receivers with a Pylon™ interface channel.

A32434 – coax contacts ordered separately.

50 Ohm blind mate contact for a SMA connector.

A31889 SMA connector plug.

412615 installation tool.

A31887 SMA connector torque wrench.

For use in all VG fixture / receiver styles
